Customer and vehicle
A professional race driver in the United Kingdom prepared a BMW F87 M2 for competitive track events and needed repeatable braking, precise pedal feel, and thermal stability over extended sessions.
Selected setup

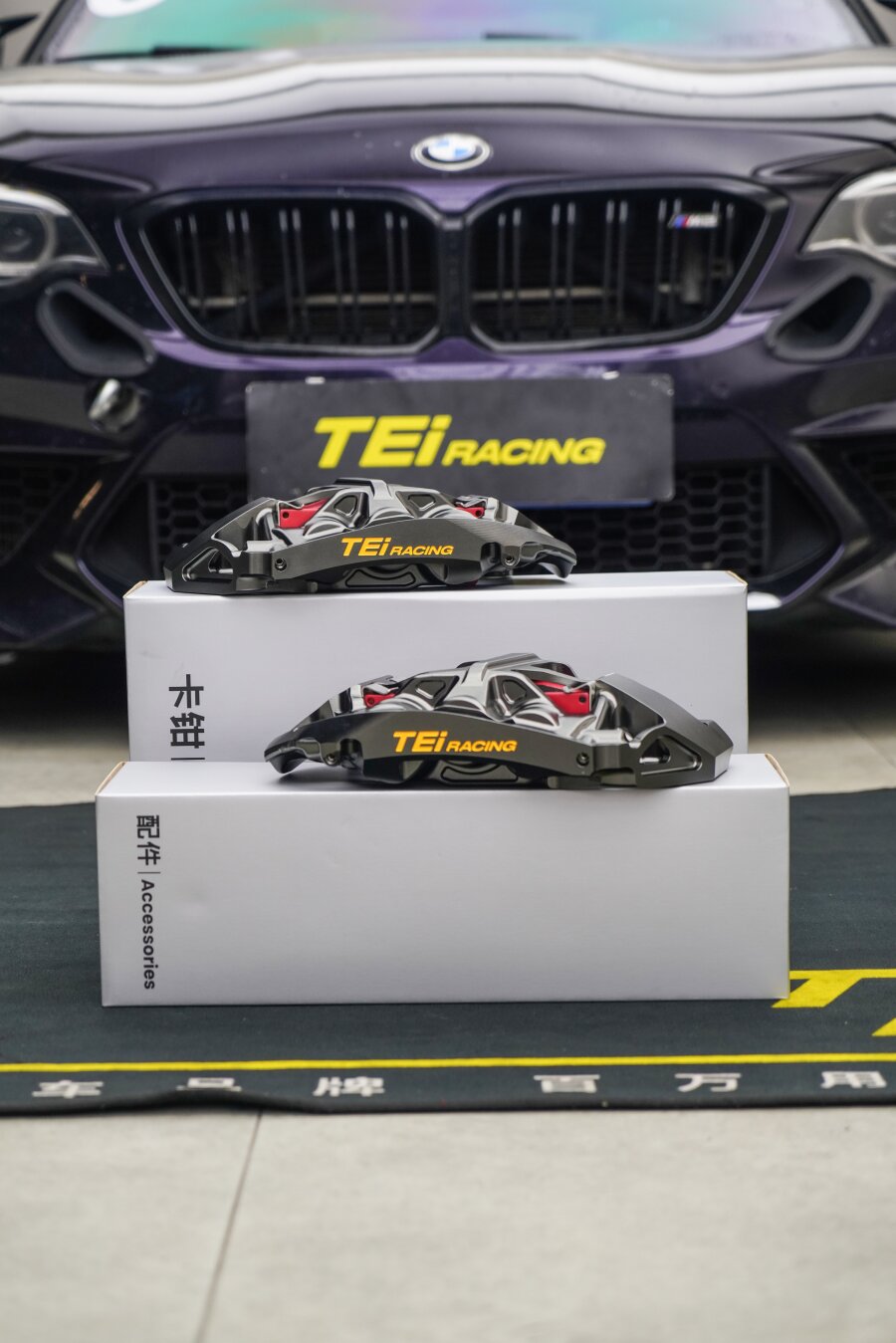

The driver selected the active TEI GT60-MONO six-piston racing kit. The source case records 378×35.5 mm rotors, TEI ceramic pads, internal fluid routing, and a stainless-steel brake-line configuration. Pad compound selection was treated as an application decision rather than a universal recommendation.
| Spec | Detail |
|---|---|
| Caliper | TEI GT60-MONO — six-piston monoblock, 6082 aluminium billet |
| Piston area | 50.21 cm² |
| Rotor | 378 × 35.5 mm, two-piece |
| Pads | TEI ceramic — R1/R2 track compounds available |
Result
The completed setup was reported to deliver consistent braking lap after lap, a sharp pedal, and improved heat management. The case is specific to a professional track application and should not be read as a street setup recommendation.
Fitment
The GT60-MONO fits 18–20-inch wheels. Clearance depends on spoke profile as much as on diameter, so send us the model, year, trim and wheel specification and we will confirm rotor size and clearance before you order.
